Door Entry RS-232 cable, where to get?

N

NoFate

Gives a lot of help
Trusted Member
Messages
303
Points
28
Hi, for some reason my indoor station always crashes when i upload the digicap file with ivms, so hikvision proposed to send the recovery image with an rs232 method...

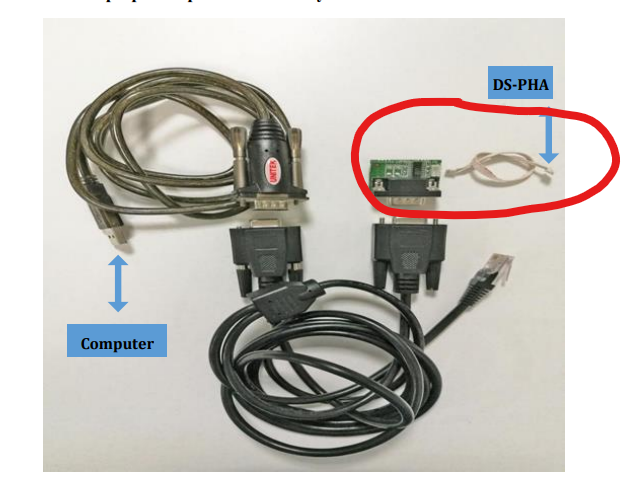

I already received instructions/tools/recovery file from then, the only part i'm missing is the rs232 cable, especially this small connector below, thats fits into my indoor staion at the back

Does anyone know where i can get it ? Maybe a link would be wonderfull, thnx!!



Attachments

  • cable.png
    232.3 KB · Views: 397
NoFate said:
Hi, for some reason my indoor station always crashes when i upload the digicap file with ivms, so hikvision proposed to send the recovery image with an rs232 method...
I already received instructions/tools/recovery file from then, the only part i'm missing is the rs232 cable, especially this small connector below, thats fits into my indoor staion at the back

Does anyone know where i can get it ? Maybe a link would be wonderfull, thnx!!

Click to expand...
I am waiting for my little connectors to arrive, should be this week. I already have the other kit from my rs232 toolkit.

David

NoFate said:
And where did you get the toolkit from?
Click to expand...
Information sources use-ip ipcamtalk, I don't know if any of this works yet, when I get the cables I'll try connecting to my NVR and a spare old camera.

Here is the Amazon link to the RS232 TTL adapter and JST ZH connectors. I suspect that other types of connectors may be used with various hikvision devices.

I've been using different serial protocols since the early 90's and have de-bricked other devices via rs232 and tftp. I just wanted to learn more about re-loading firmware for Hikvision devices.

David

ok, lets try and buy that one :-)

do you know what colors i need to use?

NoFate said:
ok, lets try and buy that one :)

do you know what colors i need to use?
Click to expand...
There's a chance you could permanently damage your device.....

RS232 TTL serial adapter
Green Tx
White Rx
Black Gnd
Red 5Vdc

David

Last edited:
Hey, is it arrived?

Am i correct with this?

RS232 TTL TO JST ZH pin
Green Tx TO Yellow
White Rx TO Black
Black Gnd TO Red Red
Red 5Vdc Not needed

NoFate said:
Hey, is it arrived?

Am i correct with this?

RS232 TTL TO JST ZH pin
Green Tx TO Yellow
White Rx TO Black
Black Gnd TO Red Red
Red 5Vdc Not needed
Click to expand...
Yes mine works, my columns / rows below are in a different order.

NVR JST ZHUSB Serial TTL adaptor
Red GroundBlack ground
Black TxWhite Rx
Yellow RxGreen Tx
White 3.3Vdc don’t connectRed 5Vdc don’t connect

Serial port settings (should be default, check)
baud rate= 115,200
stop bits=1
parity=none
flow control=none

thnx for confirming! Those serial port settings i need to recovery an Indoor station (intercom) , i have some tools from hikvision itself for that

thnx!!

NoFate said:
thnx for confirming! Those serial port settings i need to recovery an Indoor station (intercom) , i have some tools from hikvision itself for that

thnx!!
Click to expand...
this is for a DS-7604NI-E1 / 4P/A (2016) NVR, here is part of the initial boot. note bold red text

--------------------------------------------------------------
U-Boot 2010.06-svn (Aug 15 2015 - 15:18:43)

Protected at offset:0,size:20000 Protection status:[0xf88]=>[0xf8b].
Hit ctrl+u to stop autoboot: 0
### CRAMFS load complete: 3187728 bytes loaded to 0x80400000
timeout for link [4999]!
## Booting kernel from Legacy Image at 80400000 ...
Loading Kernel Image ... OK
OK

Starting kernel ...

Uncompressing Linux... done, booting the kernel.
init started: BusyBox v1.16.1 (2016-06-29 13:49:45 CST)
Starting udev: [ OK ]
Mon Apr 24 12:44:56 UTC 2023
----------<1> tar guir webs ----------
----------<2> show logo ----------
show logo Mon Apr 24 12:45:06 UTC 2023
mv: can't rename '/home/app/exec/pppd': No such file or directory
mv: can't rename '/home/app/exec/pppoe': No such file or directory
mv: can't rename '/home/app/exec/ss': No such file or directory
mv: can't rename '/home/app/exec/dropbear': No such file or directory
mv: can't rename '/home/app/exec/dropbearkey': No such file or directory
/home/start.sh: line 29: dropbearkey: not found
chmod: /usr/bin/dvrCmd/dvrtools: No such file or directory
----------<3> load hisi sdk ----------
The system mem size is 0x1
/
load 3535 ok
----------<4> del no use res ----------
mv: can't rename '/home/app/res/adAudio.jpg': No such file or directory
/home/start.sh: line 79: ./pppoed: not found
iSCSI daemon with pid=931 started!!!! the device is not toe !!!


BusyBox v1.16.1 (2016-06-29 13:49:45 CST) built-in shell (ash)
Enter 'help' for a list of built-in commands.

BusyBox v1.2.1 Protect Shell (psh)
Enter 'help' for a list of davinci system commands.
------------------------------------------------------------------

Yeah, that link is indeed wrong then, I need indeed rs232

NoFate said:
Oh, isn't that the same?
Click to expand...
The pulse voltage levels are different see this.

They may work together but I would not chance it, especially if reloading firmware. It is best to use the correct serial interface for your device. As a rule of thumb, if the Tx wire is around +3.3Vdc it should be TTL. +/- 12Vdc RS232.

+/-12Vdc into a TTL (0 to 3Vdc) Rx pin could blow the input.

Ok, I will check output first of that USB rs232 to TTL convertor, if it gives 3vdc , I should be ok?
