IP Camera can't connect to laptop or see on laptop using a mobile hotspot?

[poppywildfire]

Hi,

I cant get broadband where I live I am having to use smartphone mobile hotspots. It seem that I can only connect to one or the other.

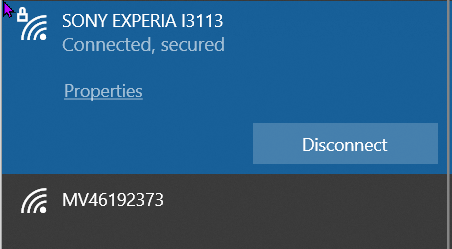

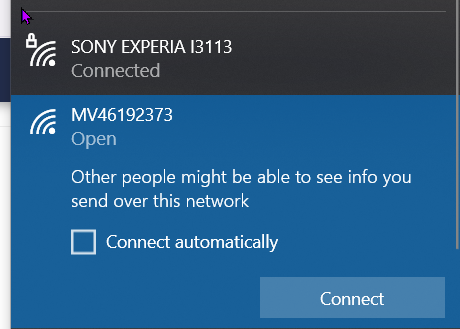

When I look at the IP properties I get for the mobile hotspot

Mobile Hotspot IP Address 192.168.43.136
SSID: SONY EXPERIA I3113
IPv4 address: 192.168.43.235
IPv4 DNS servers: 192.168.43.136
Physical address (MAC): B8-EE-65-23-E3-DA

Ipconfig Mobile Hotspot

Connection-specific DNS Suffix . :
Link-local IPv6 Address . . . . . : fe80::9868:9c3:1968:d20b%11
IPv4 Address. . . . . . . . . . . : 192.168.43.235
Subnet Mask . . . . . . . . . . . : 255.255.255.0
Default Gateway . . . . . . . . . : 192.168.43.136

I have three cameras I am happy to set one up first and work on the others after
Hotspot

Camera 1
http://192.168.1.20

Ethernet adapter Ethernet 2:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :

Wireless LAN adapter Wi-Fi:

Connection-specific DNS Suffix . : local
Link-local IPv6 Address . . . . . : fe80::9868:9c3:1968:d20b%11
IPv4 Address. . . . . . . . . . . : 192.168.1.20
Subnet Mask . . . . . . . . . . . : 255.255.255.0
Default Gateway . . . . . . . . . : 192.168.1.1

Ethernet adapter Bluetooth Network Connection:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :

What am I doing I cant see the camera even when I connect directly.

Any advise Thanks



[Phil]

You may need to form a network, with a router or switch with DHCP on to manage the IP addresses / routing?
A router that accepts a 4G SIM card may be a better route.
Seek local advice about a suitable router and SIM for IP camera access.



[poppywildfire]

Hi,

I brought a sim card router and that didnt work. I need to somehow configure the ip address to match the same network. Thanks Poppy



[David]

Hi,

I brought a sim card router and that didnt work. I need to somehow configure the ip address to match the same network. Thanks Poppy

What model SIM card router did you try?



[poppywildfire]

I just brought a USB generic universal router. It works for my internet and the camera but I can only use one either camera or laptop cant connect both on same network they are both in different IP ranges. Cant connect using V380

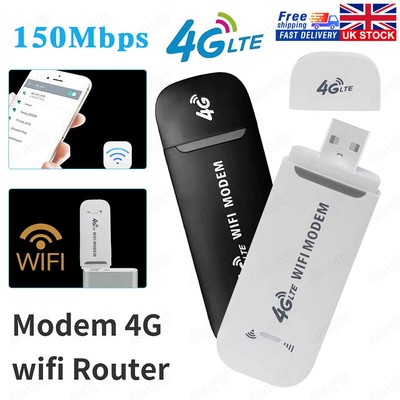

4G LTE Unlocked USB Modem Dongle WiFi Wireless Network Adapter Hotspot Router | eBay

Frequency band: 4G FDD LTE:B1/3/5. Plug the USB port into a power source for WIFI. Connect to WIFI, you can surf the Internet. Wireless access works on 3G, 4G and Wi-Fi networks. USB: Standard USB interface.

www.ebay.co.uk



[David]

Cant connect using V380

Hi Poppy, what is V380? Could you also let me know what model cameras you are using?

David



[poppywildfire]

Wifi Smart Net Camera, I was thinking cant I just assign them a static IP to put them in the same range. Thanks



[David]

Wifi Smart Net Camera, I was thinking cant I just assign them a static IP to put them in the same range. Thanks

That should work, there could be IP address conflicts with other devices. WiFi hotspots should use DHCP to assign IP addresses to the clients, better to use that.
Most hotspots are short range devices (within the same room) with poor penetration through plasterboard / brick walls. Also the hotspot may lack the processing power to handle multiple camera video streams, you may have to reduce video resolution.

David



[poppywildfire]

David,

I dont know how to asign a static ip address can you point me in the right direction. Thanks



[David]

David,

I dont know how to asign a static ip address can you point me in the right direction. Thanks

Hi Poppy,

Using DHCP would be better.

Make sure your cameras can be physically factory reset. If there is a problem accessing the camera after the IP address change you will need to do this. Your camera may only offer factory reset from the web gui. Post a web link to the camera model you are using so I can check the specs etc.

Logon on to the hotspot you are going to use and post a screenshot of the network setup page. If available include the DHCP server settings. This is not available on some hotspots. At a minimum I just need the hotspot router IP address and subnet mask.

David



[poppywildfire]

David, Thank you for your help.

The cameras do have a reset button. here is the hotspot details.

SSID: Xperia 5_6803
Protocol: Wi-Fi 4 (802.11n)
Security type: WPA2-Personal
Network band: 2.4 GHz
Network channel: 6
Link speed (Receive/Transmit): 144/144 (Mbps)
Link-local IPv6 address: fe80::9868:9c3:XXXX:d20b%13
IPv4 address: 192.168.175.235
IPv4 DNS servers: 192.168.175.89
Manufacturer: Qualcomm Atheros Communications Inc.
Description: Qualcomm Atheros AR946x Wireless Network Adapter
Driver version: 10.0.3.456
Physical address (MAC): B8-EE-65-23-E3-DA



[David]

David, Thank you for your help.

The cameras do have a reset button. here is the hotspot details.

SSID: Xperia 5_6803
Protocol: Wi-Fi 4 (802.11n)
Security type: WPA2-Personal
Network band: 2.4 GHz
Network channel: 6
Link speed (Receive/Transmit): 144/144 (Mbps)
Link-local IPv6 address: fe80::9868:9c3:XXXX:d20b%13
IPv4 address: 192.168.175.235
IPv4 DNS servers: 192.168.175.89
Manufacturer: Qualcomm Atheros Communications Inc.
Description: Qualcomm Atheros AR946x Wireless Network Adapter
Driver version: 10.0.3.456
Physical address (MAC): B8-EE-65-23-E3-DA

Poppy,
Your Sony Xperia5 may not perform as you expect it to. Smartphone WiFi hotspots may only allow 1 or 2 devices to connect, Bluetooth maybe 3 to 5 devices. Your best option is the USB WiFi hotspot dongle.

After going through the thread I suspect the main problem is the initial WiFi connection that is needed before true network connectivity is established. A fixed IP address will not solve this. Setup an open (no wifi password needed) hotspot wifi network and try connecting your laptop and camera. Also the SSID Xperia 5_6803 has a space in it, some devices do not like this.

David



[poppywildfire]

They are in a different ip range 192 the other 162 I need them to be in 192 to at least give it a try. I have ordered a new camera to try I have a wifi router but its the ip ranges I am going to look at changing that and see how I get on. Thanks Poppy



[poppywildfire]

Have done a factory reset and connected via usb and installed V380 App on the phone cant connect is it the IP Range Looking at trying to set a static ip

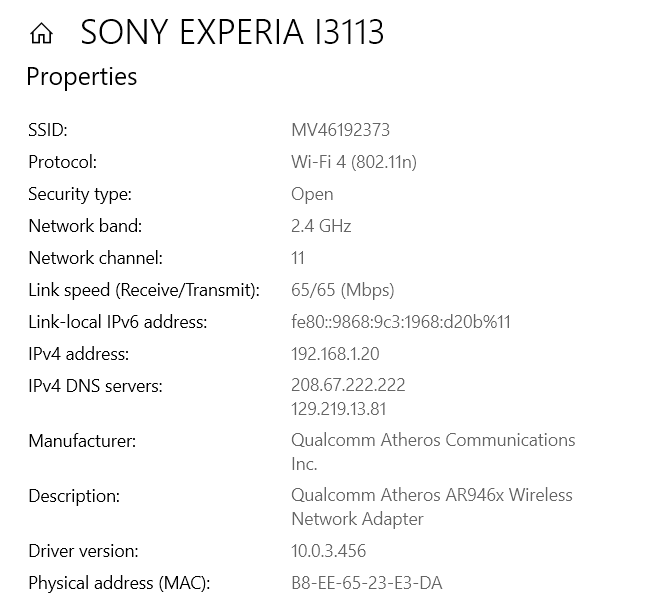

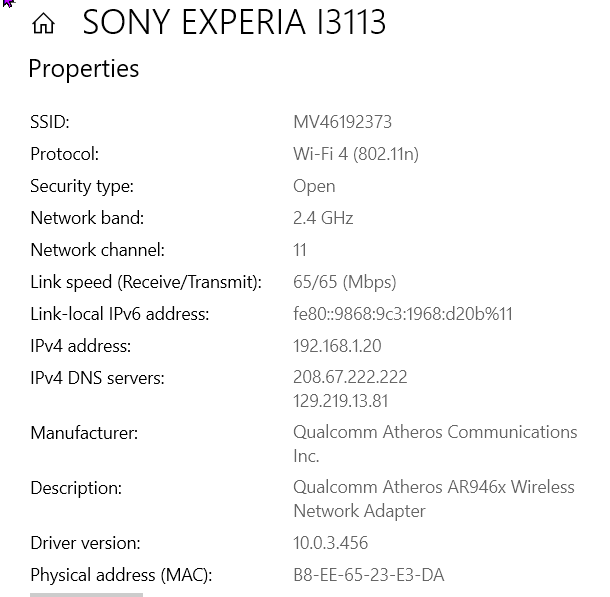

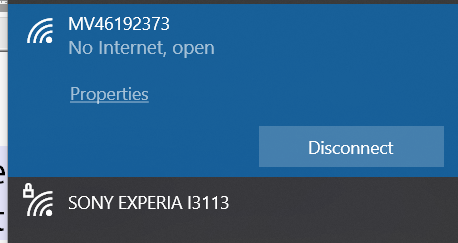

Camera
SSID: MV46192373
IPv4 address: 192.168.1.20
IPv4 DNS servers: 208.67.222.222
129.219.13.81

Hotspot
SSID: Xperia 5_6803
IPv4 address: 192.168.162.235
IPv4 DNS servers: 192.168.162.136
______________________________



[David]

Camera
SSID: MV46192373
IPv4 address: 192.168.1.20

Looking at this YouTube video and seeing the camera ssid MV46192373, I think your camera is a hotspot and expects devices to connect to it. The camera needs to be in wifi client mode to connect to another hotspot.

Can you connect your laptop wifi to the camera and try to logon to the camera web gui at 192.168.1.20?

connected via usb

which devices did you connect using the usb cable?

Can you post the camera specifications?

David
