7208HUHI- not loading after firmware update

[IceK]

id-7208HUHI-K1/4S(B) updated with DVR-K8A3_EUROPE-ML_STD_V4.26.131_210811.
Update was OK error in loading shows insmod: can't insert 'extdrv/tp2823.ko': No such file or directory

***

• ATTENTION!! PLEASE READ THIS NOTICE CAREFULLY ! *
• Don't power off or anything that interrupt it ! *
• The upgrade process will finish in 3 minutes ! *
• If this program fails, machine might be unusable ! *

***

Erasing cfg file ... Done
Writing ...
dav0-21-1. write uImage len: 5261360
dav0-21-2. write start.sh len: 9368
dav0-21-3. write hkmem_load.sh len: 8528
dav0-21-4. write player.tar.lzma len: 84928
dav0-21-5. write sys_app.tar.lzma len: 15176416
dav0-21-6. write gui_res.tar.lzma len: 2966520
dav0-21-7. write WebComponents.exe len: 2380784
dav0-21-8. write webs.tar.lzma len: 1283240
dav0-21-9. write i18n.tar.lzma len: 662296
dav0-21-10. write RSA len: 24
dav0-21-11. write new_10.bin len: 1576
dav0-21-12. write DSP1.bin len: 1966080
dav0-21-13. write rsa_result_p0.bin len: 256
dav0-21-14. write FD_Algorithm_model.bin len: 1600400
dav0-21-15. write rsa_result_p1.bin len: 256
dav0-21-16. write SMD_Algorithm_model.bin len: 15886008
dav0-21-17. write rsa_result_p2.bin len: 1024
dav0-21-18. write FRCNN_CLS_Algorithm_model.bin len: 56
dav0-21-19. write rsa_result_p3.bin len: 256
dav0-21-20. write FRCNN_Algorithm_model.bin len: 3306512
dav0-21-21. write rsa_result_p4.bin len: 256
dav0-21-21. write flag file /dav0/version.bin len: 4
Done
Checking ...
Done
Update successfully !
Press ENTER key to reboot

[ 198.733758] do_update(257) called reboot syscall, cmd: 0x1234567.
[ 198.741135] Restarting system. (task: do_update, PID:257)
SPI NAND
Flash ID read done
Normal Boot
[SECURE_INF]: Platform:0x20180a BuildTime:0x5e8f07de

[SECURE_INF]: [SECURE] <<< Check secure boot enable >>>

[SECURE_INF]: <<< Secure Boot >>>

[SECURE_INF]: loader ready to boot

Enter Loader
WATCHDOG RESTART
0
Version 0.3.8
done
DDR1 1800 2Gb
Uncompress from 0x100000 to 0x0, size 296096


U-Boot 2016.07-svn37416 (Apr 09 2020 - 19:32:18 +0800)

pwm read 5, set duty = 20
Hit ctrl+u to stop autoboot: 0
Loading file 'uImage' to addr 0x02000000...
Done
Verifying RSA ... OK
## Booting kernel from Legacy Image at 02000000 ...
Image Name: Linux-4.9.44
Image Type: ARM Linux Kernel Image (uncompressed)
Data Size: 5261033 Bytes = 5 MiB
Load Address: 00008000
Entry Point: 00008000
Loading Kernel Image ... OK

Starting kernel ...

Uncompressing Linux... done, booting the kernel.
[ 4.099843] init(1) called reboot syscall, cmd: 0x0.
Thu Jan 1 00:00:04 UTC 1970

Starting udev: [ OK ]
UBI device number 0, total 832 LEBs (105644032 bytes, 100.8 MiB), available 0 LEBs (0 bytes), LEB size 126976 bytes (124.0 KiB)
waiting for /dev/ubi0_0.
UBI device number 1, total 128 LEBs (16252928 bytes, 15.5 MiB), available 0 LEBs (0 bytes), LEB size 126976 bytes (124.0 KiB)
waiting for /dev/ubi1_0.
bootpart :0
/usr/bin/hrsaverify: verify "/tmp/start.sh" success!
/usr/bin/hrsaverify: truncate "/tmp/start.sh" to 9112(2398 hex) success!


Protect Shell (psh)
Enter 'help' for a list of DVR/NVR system commands.

# sdbg: serverip:192.0.0.128 who:
nfsdir: kdbg:1
language is 1
/usr/bin/hrsaverify: verify "/tmp/hkmem_load.sh" success!
/usr/bin/hrsaverify: truncate "/tmp/hkmem_load.sh" to 8272(2050 hex) success!

---------------------------------------------------------------------------------------------
load hkmem start*
---------------------------------------------------------------------------------------------
af37
DS_72_78_08HUH_M
cava_bin 0x0c000000 0x400000 dsp_ddr0 0xc400000 0x2AEED000
---------------------------------------------------------------------------------------------
load hkmem end*
---------------------------------------------------------------------------------------------
----------hkmem_load success ----------
----------<1> tar sys_app ----------
[ 10.897149] DWC_ETH_QOS fcc00000.eth0 eth0: Link is Up - 1Gbps/Full - flow control rx/tx
decompress sys_app done.
----------<2> tar guir webs ----------
decompress gui_res done.
decompress webs done.
EP cmdline will change to:" console=ttyS0,115200 pdbg=4 mem=148M console=shmtty0"
[Platform:na51039]Found devices cnt[1] bitmaps[0x2].
[EP1]Probed PCIe ...
ioctl setting ep tags failed !, errno=22
[EP1]start successfully!
---------------------------------------------------------------------------------------------
Boot GM8316(83160004), ,
---------------------------------------------------------------------------------------------
DS_72_78_08HUH_M
chipid is 8316
devType is af37
----------------------------------------------------------------
ddr name: frammap0(mtype: cma_mem)
chipid: 0
ddrid: 0
base: 0x6800000
end: 0x8000000
size: 0x1800000 bytes
memory allocated: 0x0 bytes
memory free: 0x1800000 bytes
max available slice: 0x1800000 bytes
memory allocate count: 0
clear address: 0x6800000
dirty pages: 0
clear pages: 6144
size alignment: 0x1000

global DDR mapping:
Global DDR:0 ==> chip0, local ddrid:0
Global DDR:1 ==> chip0, local ddrid:1
Global DDR:2 ==> chip1, local ddrid:2
Global DDR:3 ==> chip2, local ddrid:3
Global DDR:4 ==> chip3, local ddrid:4

hdal_base: 0xc000000, hdal_size: 0x34000000
loadAd tp2823:0,tp2833C:0,tp2827C:0,tp2828:0,tp2830:0,tp2831:0,nvp6134:0,nvp6134b:0,reg_fe:0,reg_ff:0
load ad err
cmdBuf:insmod extdrv/tp2823.ko
insmod: can't insert 'extdrv/tp2823.ko': No such file or directory



[RetiredDinosaur]

You used the gen 2 firmware when your recorder is gen 1 and you've likely bricked it unless it can be revived. Probably best to return back to your supplier explaining above. The correct firmware for gen 1 is here



[IceK]

Tried that firmware and its not accepted by the DVR, as shown below.
It appears not to be compatible, whereas the one I was using flashes OK, however, the DVR does not load.. as indicated in my first post..


This program will download and upgrade software.
*******************************************************
* ATTENTION!! PLEASE READ THIS NOTICE CAREFULLY! *
* Don't reset machine,or anything that interrupt it. *
* The upgrade process must finish in 10 minutes! *
* If this program fails,machine might be unusable, *
* and you will need to reflash again. *
* If you find this too risky,power off machine now. *
*******************************************************

ftp server not exit[-110]!
################################ [ 8.000 MB]
################################ [16.000 MB]
#####T ########################### [24.000 MB]
################################ [32.000 MB]
############################
tftp transmit over,file size[41055040][39.156 MB].
[uImage ]: offset is 592 size is 3485064
[start.sh ]: offset is 3485656 size is 6368
[player.zip ]: offset is 3492024 size is 2620992
[sys_app.tar.lzma ]: offset is 6113016 size is 8281008
[gui_res.tar.lzma ]: offset is 14394024 size is 1930992
[WebComponents.exe ]: offset is 16325016 size is 2326176
[webs.tar.lzma ]: offset is 18651192 size is 833648
[i18n.tar.lzma ]: offset is 19484840 size is 389624
[hikmaCore.mvcmd ]: offset is 19874464 size is 770088
[RSA ]: offset is 20644552 size is 24
[cnn_pdc_cls_ma245x ]: offset is 20644832 size is 20408928
[rsa_result.bin ]: offset is 41053760 size is 1024
The digicap info: language - 0x1 device_class - 0x5F oemCode - 0xFFFFFFFF
The board info: language - 0x1 device_class - 0x9C7 oemCode - 0x1
upgrade packet mismatch, please select correct packet
Can not find correct packet for upgrade, give up!!!
failed(-5)!
Press ENTER key to reboot



[RetiredDinosaur]

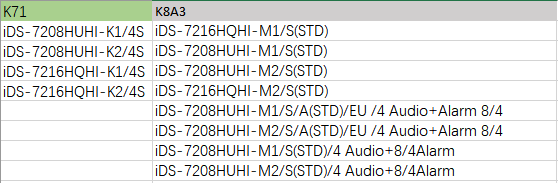

Your DVR is the first gen acusense (K71) and the firmware I previously linked is the only one on the portal. Try V4.70.110_220328 which is found on the Hikvision website but nowhere to be found on the portal.



[IceK]

I tried that and it flashed OK, however, the problem is still there. previously it failed with tp2823 file, this time its the directory

hdal_base: 0xc000000, hdal_size: 0x34000000
loadAd tp2823:0, tp2833C:0, tp2827C:0, tp2828:0, tp2831:0, tp2830:0, nvp6134:0, nvp6134b:0, reg_fe:0, reg_ff:0
cmdBuf:insmod extdrv/
insmod: can't insert 'extdrv/': No such file or directory



[IceK]

I am also using the commands below; maybe they are not correct for this DVR

setenv ipaddr 192.0.0.64
setenv serverip 192.0.0.128
setenv bootargs console=ttyS0,115200n8 root=/dev/ram0 rw initrd=0x42000000 init=/bin/sh
setenv bootcmd 'tftp 0x42000000 uImage; update'



[RetiredDinosaur]

Not sure how you're flashing the DVR is it via the web recovery UI or a tftp recovery tool? If the latter, try this



[IceK]

Using TFTP with serial cable attached to a 4 pin header on the main board. Console activity is accessed by PUTTY.
SADP or WEBGUI do not pick up the DVR.
The firmware flashes fine, as long as it is the correct one. After flashing and reboot the putty console displays the final line
insmod: can't insert 'extdrv/': No such file or directory

System does not go any further, there is NO Video display only the output in PUTTY



[RetiredDinosaur]

I think its time to return this back to your supplier



[IceK]

Yes, I have noticed other errors in the log files, so definitely not worth spending anymore time on...
